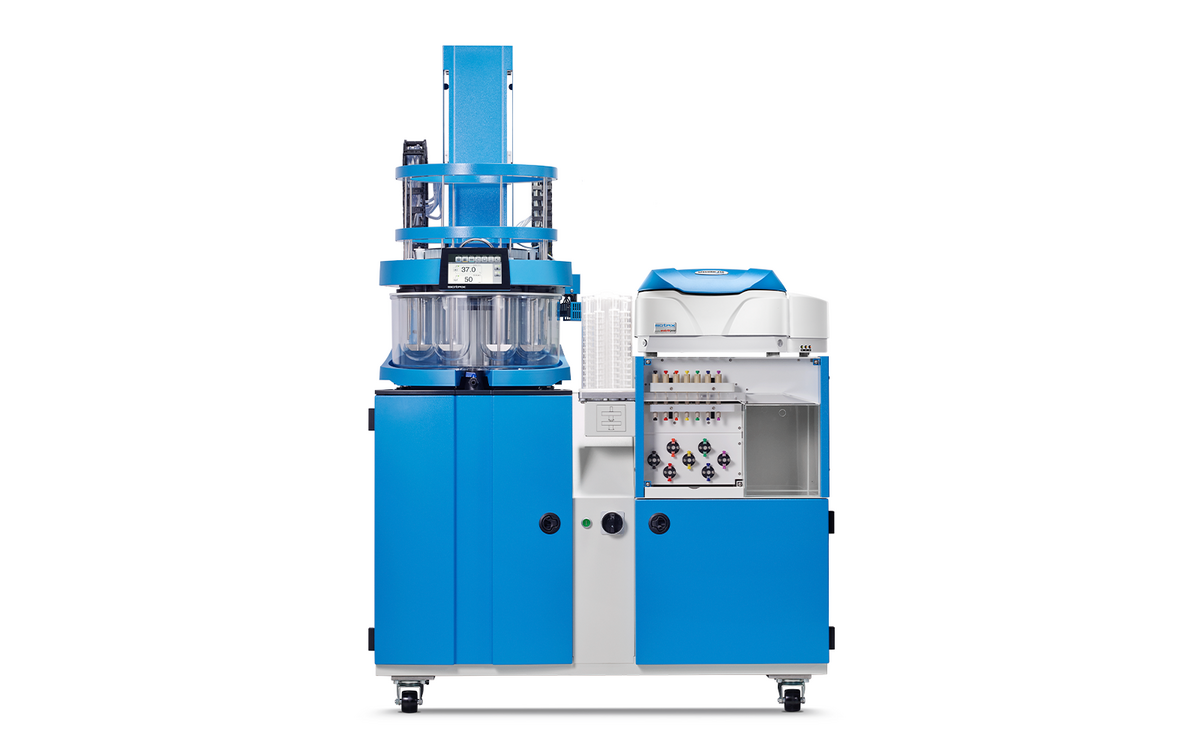

ATF Xtend™ UV Online

Fully automated dissolution tester with real-time UV-Vis results.

  • 100% IMMEDIATE - Dissolution results are generated in real-time with integrated UV-Vis analysis.
  • 100% AUTOMATED - Run multiple dissolution tests in an unattended sequence from vessel filling to self-cleaning.
  • 100% TRACEABLE - Program every time point and event of your dissolution profile including media preparation, wavelength, standard, pH changes and cleaning.
  • MEDIA - Highly repeatable media preparation with degassing, integrated vessel filling, and automated pH change.
  • TEST - Automatically perform an entire series of dissolution runs under identical test conditions.
  • CLEAN - Clean in place the same way every time and let your system prepare itself for the next dissolution run.
  • ANALYZE - Seamless integration of double beam or diode array UV-Vis spectrophotometers.

Automation

Dissolution process steps with a fully automated UV Online dissolution testing system.

Highlights

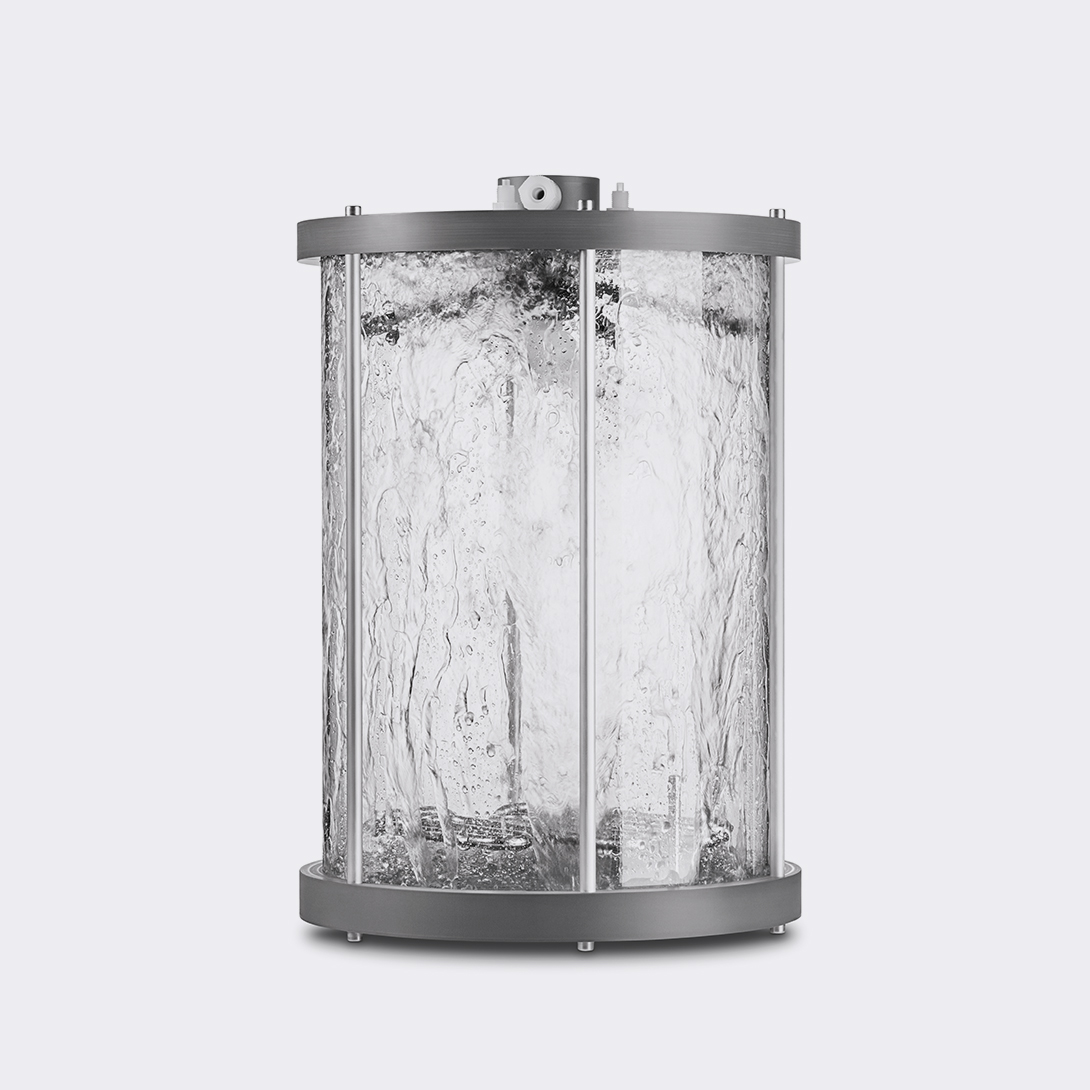

Power washing routine of the integrated MP-F media preparation station

Prepare. Degas. Clean.

An integrated multi-purpose station allows fully automated preparation & degassing of media using different recipes and sources. Pull a vacuum on your media at temperature for complete & cost-efficient deaeration. Use effectively on all media types including foaming media with surfactants. Power wash the tank for efficient cleaning. Robust cleaning routines facilitate easy media change for DR / MR methods as well as entirely different products within a series of dissolution test runs.

Automated vessel filling avoiding reaeration of the dissolution medium.

100% Unattended.

How much time does your laboratory team spend on tasks such as filling vessels and cleaning? With the ATF Xtend™ dissolution tester, all steps from media preparation to cleaning are performed automatically. Prepared media is dispensed down the vessel wall avoiding reaeration and delivered volumes are confirmed gravimetrically. At the end of a test, the system cleans itself with customizable washing routines and starts the next dissolution run.

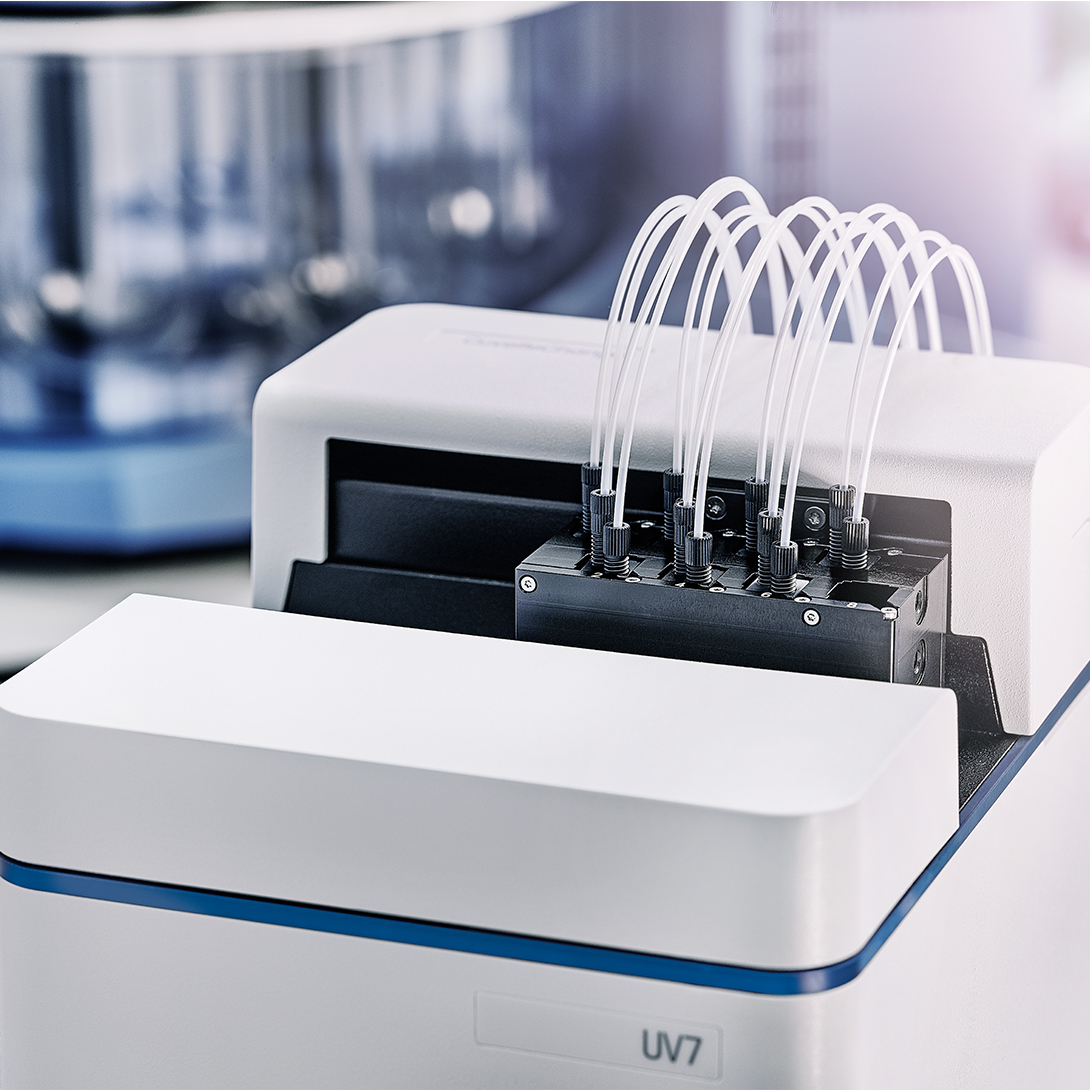

Immediate results with integrated UV-Vis photospectrometer for dissolution testing.

Results. Immediately.

Seamlessly integrated UV-Vis spectrophotoscopy for immediate analysis of the dissolved active is the quickest way to get dissolution results. Each vessel can be measured instantly at one or multiple timepoints for immediate release (IR), delayed release (DR), or modified release (MR) methods. As data integrity requirements continue to increase, the ATF Xtend™ automatically consolidates protocolled test conditions and analytical results into one single dissolution test report.

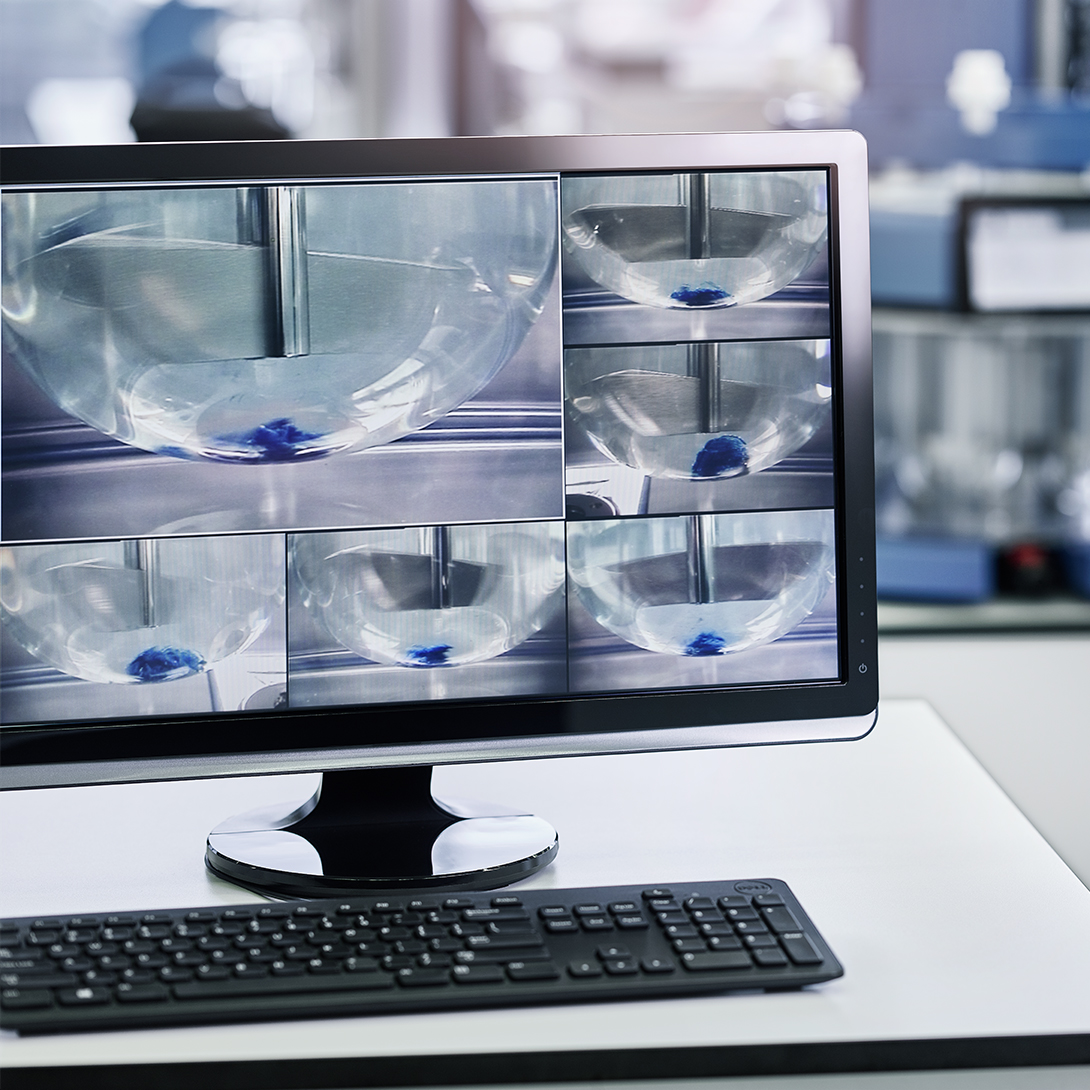

Individual video monitoring of each dissolution tester vessel throughout the test.

100% Repeatable.

Fully automated operation ensures that dissolution tests are always performed under identical conditions - over and over again. From media preparation to vessel filling including gravimetric verification of vessel volumes, sampling & filtration, to cleaning of the complete system, all steps are automatically executed and protocolled. Advanced functionalities such as in-vessel volume monitoring and CenterView™ video monitoring further add to the traceability of your test results.

AutoCompliance with self-centering dissolution vessels.

Compliance. Built-in.

Take full control of your data and manage all your methods, results, and users with q-doc® software. Use the same method on different dissolution tester, consolidate data from multiple test runs, and avoid redundant management of users and their passwords. Whether operated with a single PC workstation or in a networked environment, the modular data management software offers built-in data integrity and ease of regulatory compliance.

Modules

AT-F dissolution bath for fully automated Xtend™ systems.

AT-F bath

Integrated module with vessel filling, sampling, and cleaning functions.

Integrated station for preparing & degassing dissolution media at temperature

MP-F media station

Integrated module to prepare, heat, and degas dissolution media.

Integrated sampling pump for fully automated Xtend™ dissolution systems

CP-F piston pump

Fast and powerful to push through filters and handle foaming media.

Integrated filter station for fully automated Xtend™ dissolution systems

FS-F filter station

Integrated module to automatically exchange filters for multiple test runs.

Fully automated emptying and spray cleaning of dissolution vessels.

CS-F cleaning station

Integrated module for spray cleaning and emptying of vessels.

Double beam UV-Vis spectrophotometer for realtime dissolution data

Specord® UV-Vis

High-performance double beam spectrophotometer with CDD.

Data management software for all methods, results, and users.

q-doc® software

All your data in one place with built-in 21 CFR part 11 compliance.

Options

Integrated UV-Vis analysis for immediate dissolution testing results.

UV7 UV-Vis

Compact and fast diode array spectrophotometer for UV Online.

Video monitoring of the dissolution process in each individual vessel.

CenterView™

Video monitoring of the dissolution process in each individual vessel.

RS robotic station

Automated USP 1 basket exchange and USP 2 sinker retrieval.
